TELESCOPING COLUMNS



Telescoping Columns TELESCOPING COLUMNS* FOR NEW HOME CONSTRUCTION AND REMODELING
Perfect for permanent or temporary support applications under beams, stairs, porches, decks, crawl spaces* and heavy load areas. Fully adjustable telescoping columns come with double carriage nut and bolt for added safety.
All moving parts fit snugly to avoid lateral displacement, and the top and bottom plates are deeply embossed to mitigate movement and prevent dishing.

Telescoping Columns perfect for heavy load areas.

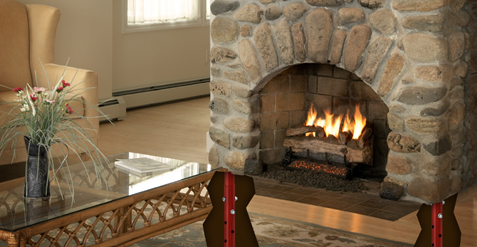

Place extra beam against joists below heavy fireplace. Hold in place with
two telescoping columns.

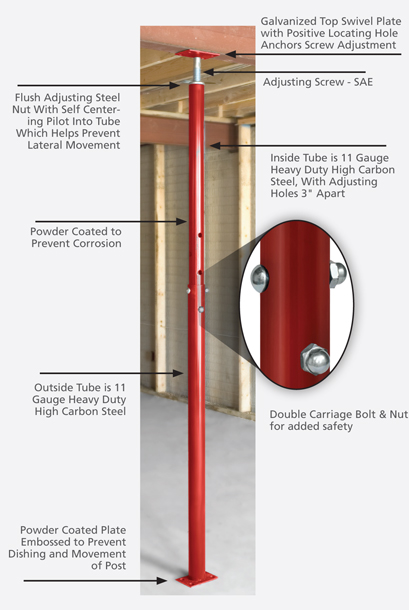

FEATURES

  • Premium quality heavy duty high carbon steel
  • Coated to prevent corrosion
  • Adjustable, easy to assemble, easy to install
  • Double locked for added strength and safety

USE FOR

  • Corrects sagging floors
  • Supports basement beams and stairwells

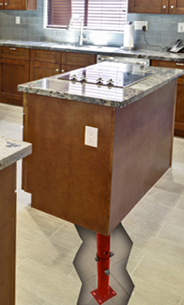

  • Under kitchen areas with granite tops

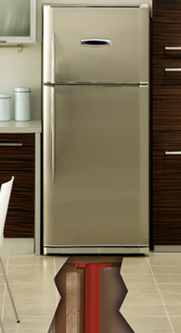

  • Heavy load areas such as refrigerators and pianos
  • Steel telescoping columns give support at butt or lap joints in main supporting beams
  • Permanent, temporary or additional support
  • Substitute steel telescoping columns for rotted wooden posts usually found at junction of main beams
  • Heat often affects floors. Use an extra cross beam above furnace... support with two telescoping columns
  • Frequent plaster cracks around stair wells indicate need for extra steel telescoping columns as indicated.

*Applications that are exposed to environmental elements should be checked annually for potential corrosive activity.

Telescoping Columns

  Floor Jack



TELESCOPING COLUMNS

Model# Adjustment Range Allowable Load
CA-108 6ft. 2in. - 9ft. 0in.
1.88m. - 2.74m.
8,655 lbs.@9ft. 0in.
38.5 kN.@2.76m.
CA-84 4ft. 8in. - 8ft. 4in.
1.42m. - 2.54m.
8,280 lbs.@8ft. 4in.
36.7 kN.@2.54m.
CA-2 2ft. 10in. - 4ft. 7in.
.86m. - 1.40m.
13,002 lbs.@4ft. 7in.
57.8kN.@1.40m.
CA-3 1ft. 7in - 3ft.
.48m. - .91m.
14,746 lbs.@3'
65.6 kN.@ .91m.

These Products meet the following standard:
CAN/CGSB-7.2-94, Adjustable Steel Columns. CCMC report #13269-L

*Also referred to as Teloposts.
